CPU

• Supports Intel® Core™ Ultra Processors (Series 2), LGA1851


• Supports Intel® Turbo Boost Technology 2.0


• Supports Intel® Turbo Boost Max Technology 3.0


• CPU supports up to 65W


• Turbo Boost Max Technology 3.0 support depends on CPU type

Chipset

Intel® Q870 Chipset

Memory

• 2 × SO-DIMM slots, max. 128GB


• DDR5 up to 6400 MT/s


• Non-ECC, Un-buffered, Clocked SO-DIMM


• Dual channel memory architecture


• Supports Intel® Extreme Memory Profile (XMP)


• On-Die ECC supported (Non-ECC DDR5)

Graphics

• 2 × DisplayPort (up to 4K @ 60Hz)


• 1 × HDMI™ (up to 4K @ 60Hz)


• Graphics output depends on CPU

Expansion Slots

• 1 × PCIe 5.0 x16 slot

Storage

• 1 × M.2 slot (Key M, 2280, PCIe 5.0 x4)


• 2 × SATA 6Gb/s ports

Ethernet

• Intel® I219LM 1Gb Ethernet


• ASUS LANGuard

Wireless & Bluetooth

• M.2 2230 slot (Key E, CNVi & PCIe)


• Wi-Fi module sold separately

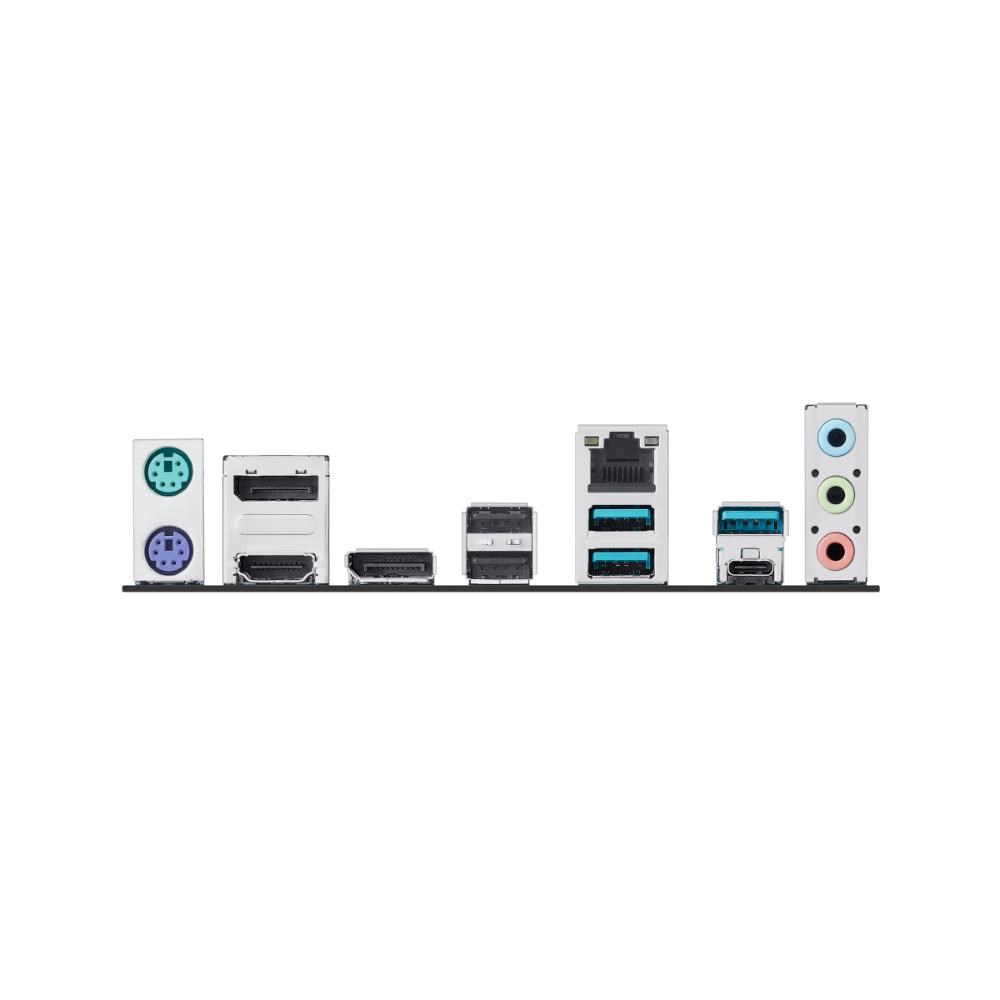

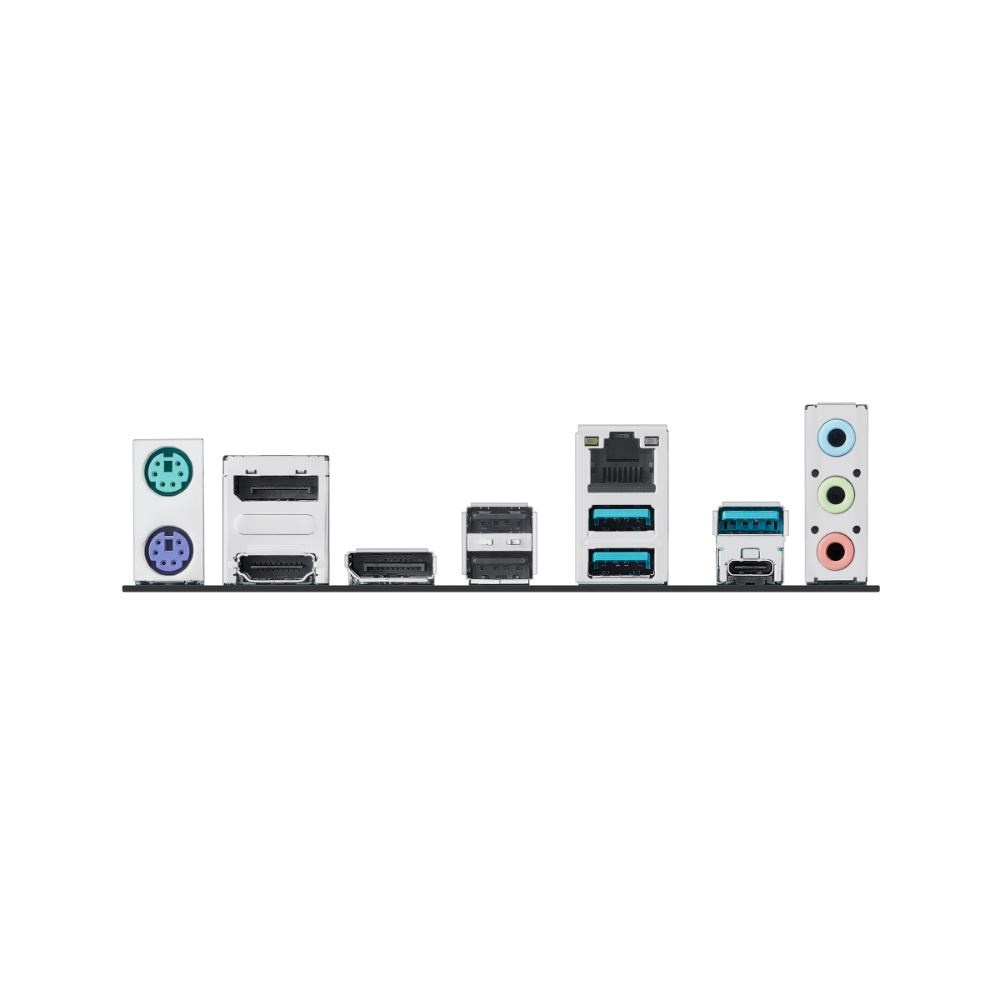

USB

Rear USB

• 1 × USB 10Gbps Type-C®


• 3 × USB 10Gbps Type-A


• 2 × USB 2.0 Type-A

Front USB

• 1 × USB 10Gbps Type-C® connector


• 1 × USB 5Gbps header (supports 2 ports)


• 1 × USB 2.0 header (supports 2 ports)

Audio

• Realtek 7.1 Surround Sound HD Audio CODEC


• Up to 24-bit / 192 kHz playback

Form Factor

Mini-ITX (17 × 17 cm)
