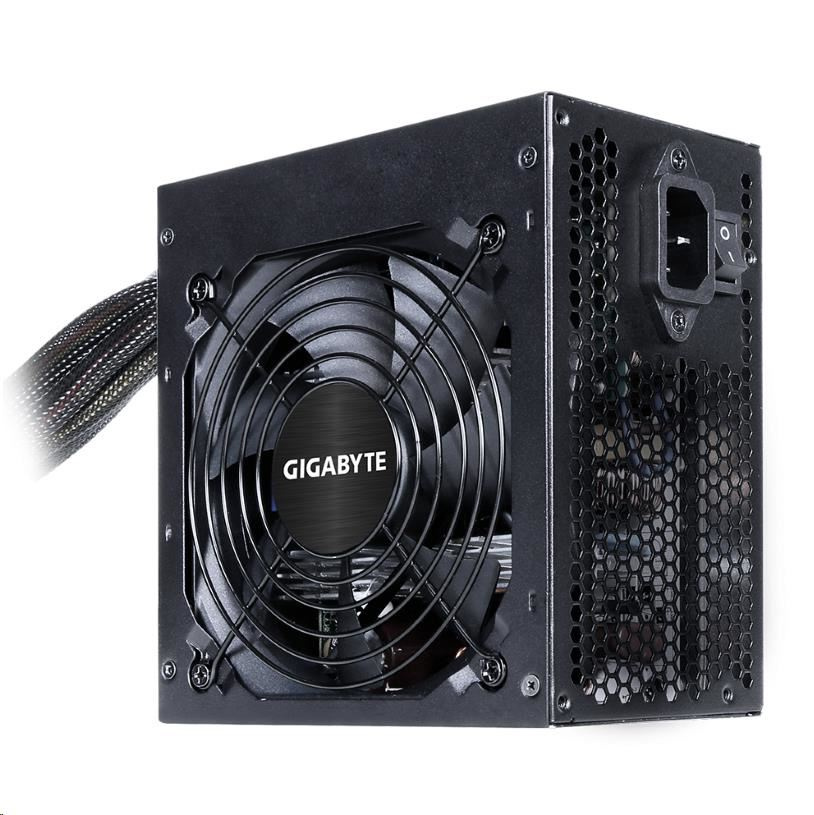

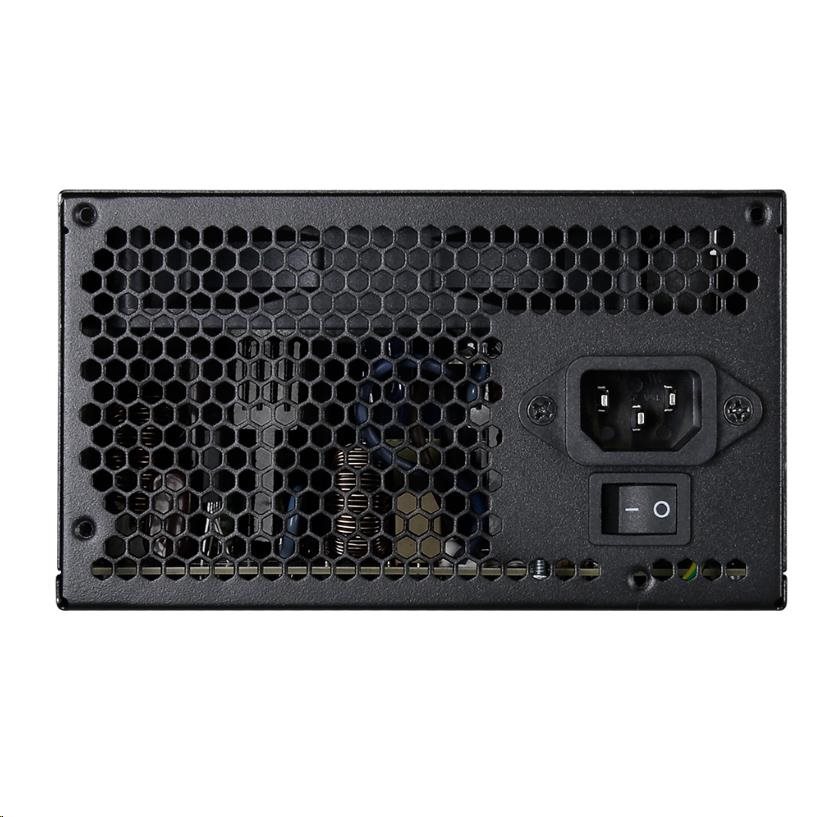

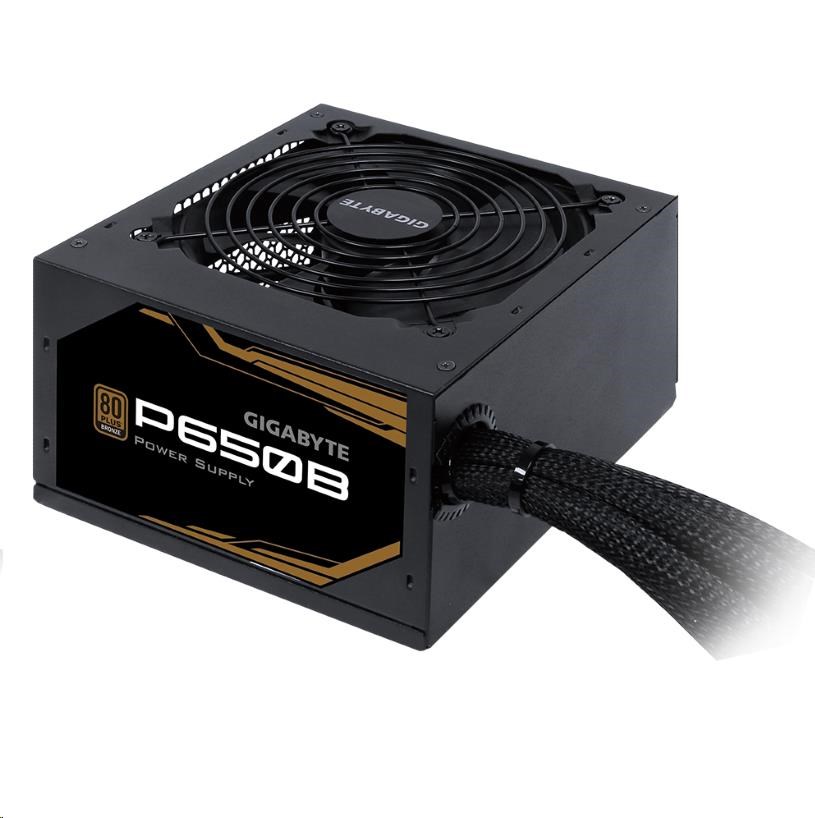

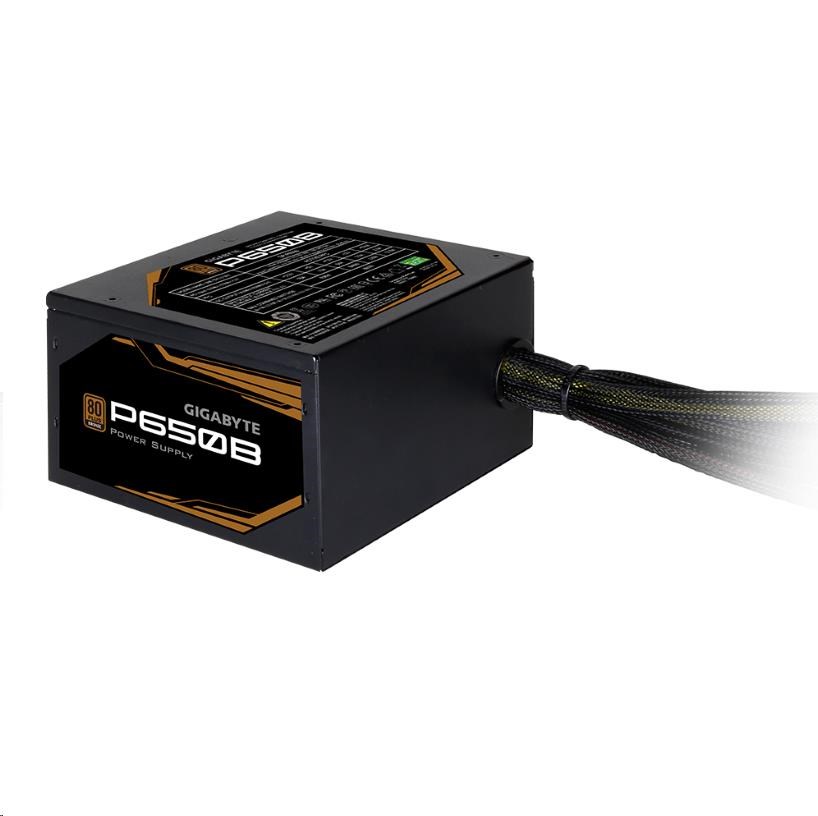

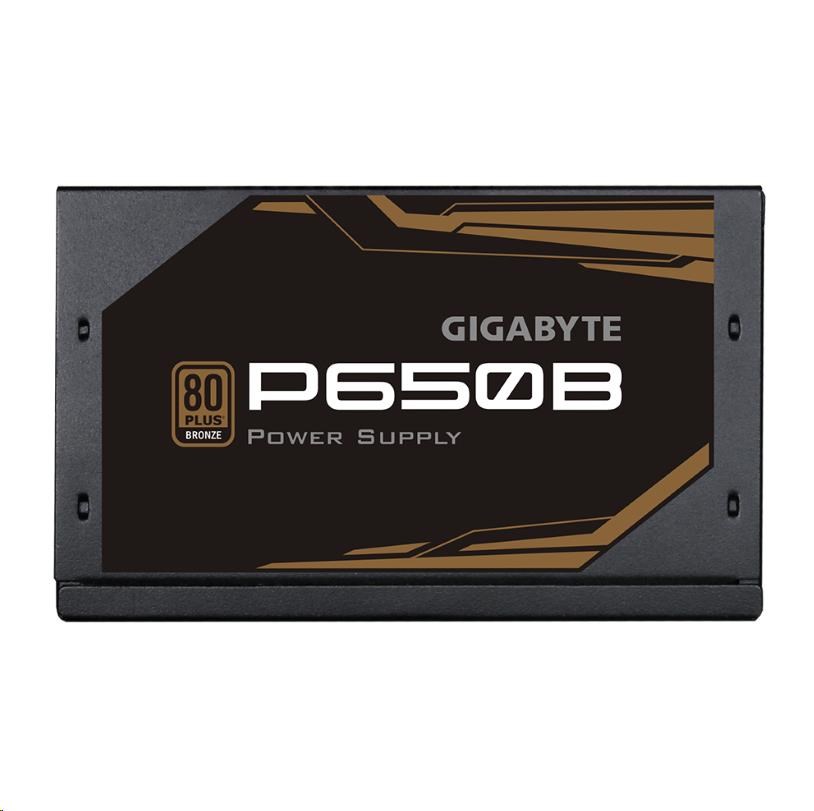

BAZAR - GIGABYTE zdroj P650B, 650W, 80plus bronze, 12 cm fan - Po opravě (Komplet)
Popis a parametry
BAZAR - GIGABYTE zdroj P650B, 650W, 80plus bronze, 12 cm fan - Po opravě (Komplet)
Bazar
P650B
- 80 PLUS bronze certified: up to 89% efficiency
- 100% Japanese Capacitors
- 120mm Hydraulic Bearing (HYB) Fan
- Single +12V rail
- Meet ErP LOT6 2013 (< 0.5W at standby mode)
- OPP/UVP/OVP/SCP/OCP protection
- 3 years warranty (Adjusted according to different regions)
TECHNICAL SPECIFICATIONS
| Model | P650B |
| Type | Intel Form Factor ATX 12V v2.31 |
| PFC | Active PFC (>0.9 typical) |
| Input Voltage | 100-240 Vac (full range) |
| Input Current | 9A-4A |
| Input Frequency | 50-60 Hz |
| Output Capacity | 650W |
| Dimension | D150 x W140 x H86 mm |
| Fan Type | 120mm Double ball bearing fan |
| Efficiency | Up to 85% at typical load |
| MTBF | >100,000 hours |
| Protection | OPP/UVP/OVP/SCP/OCP |
| Regulatory | CE/CCC/BSMI/KCC/EAC/UL/TUV/RCM/FCC/PSE |
| Connectors | ATX/MB 20+4 Pin x 1 CPU/EPS 4+4 Pin x 1 PCI-e 6+2 Pin x 4, SATA x 6 4 Pin Peripheral x 3 4 Pin Floppy x 1 |
.
ParametryPorovnání
Formát zdroje
ATX
Konektory
PCIe 8-pin
Konektory
SATA 15-pin
Konektory
FDD
Konektory
8pin CPU 1x
Konektory pro základní desku
ATX 24-pin
Konektory pro základní desku
EPS 8-pin
Efektivita zdroje
80 Plus Bronze
Modulární kabeláž
Ne
