ARCTIC ventilátor P12 PWM PST 120mm, bílá
Popis a parametry

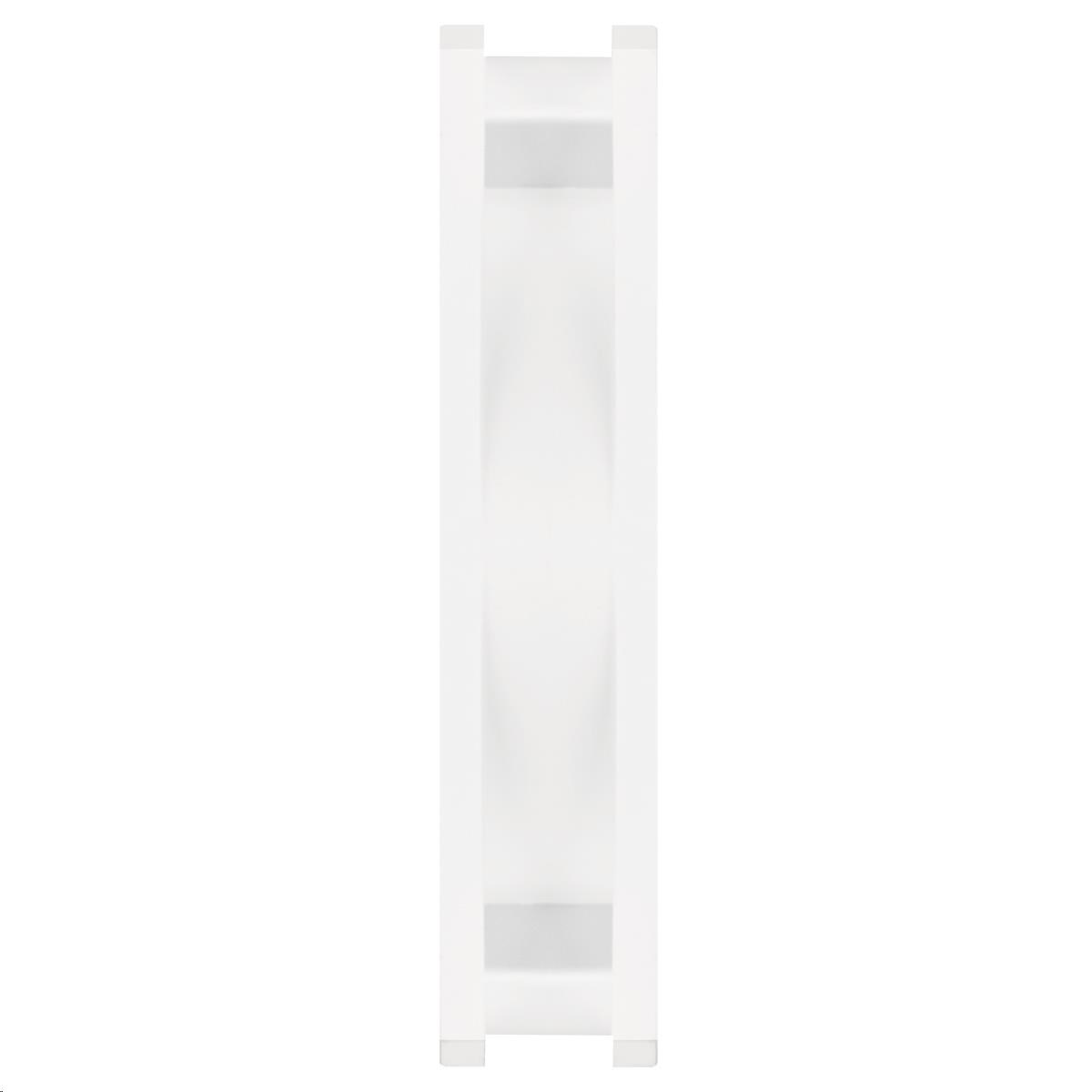

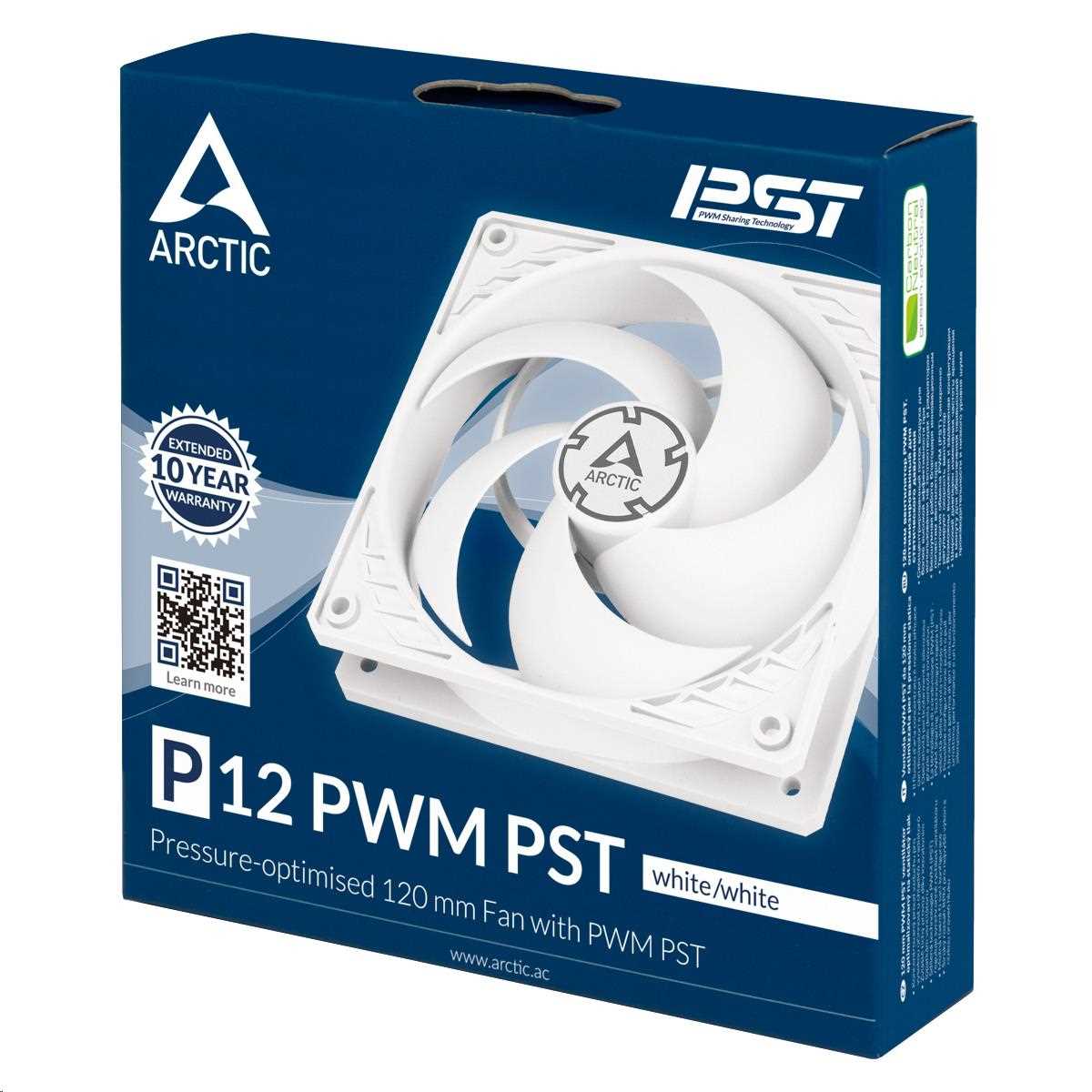

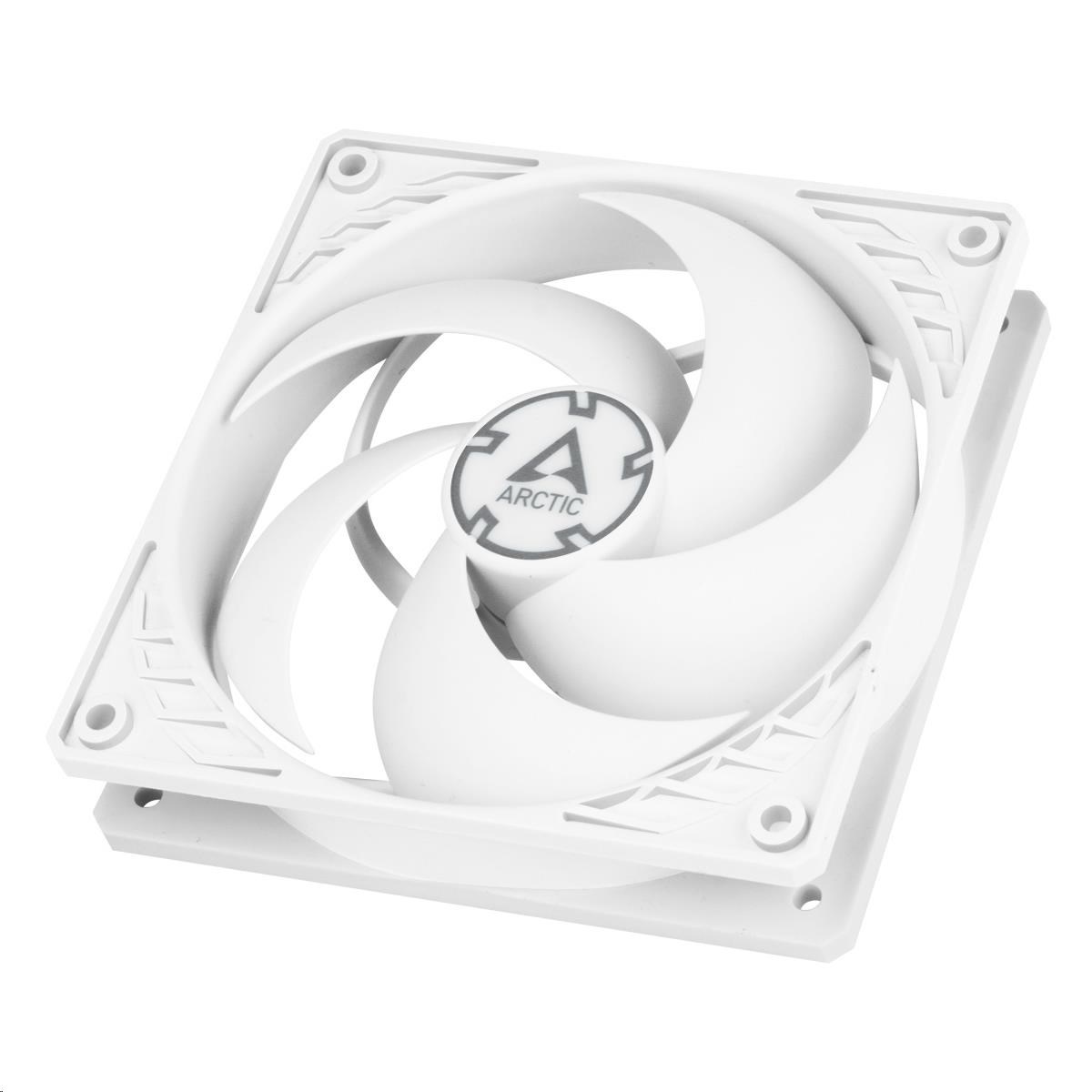

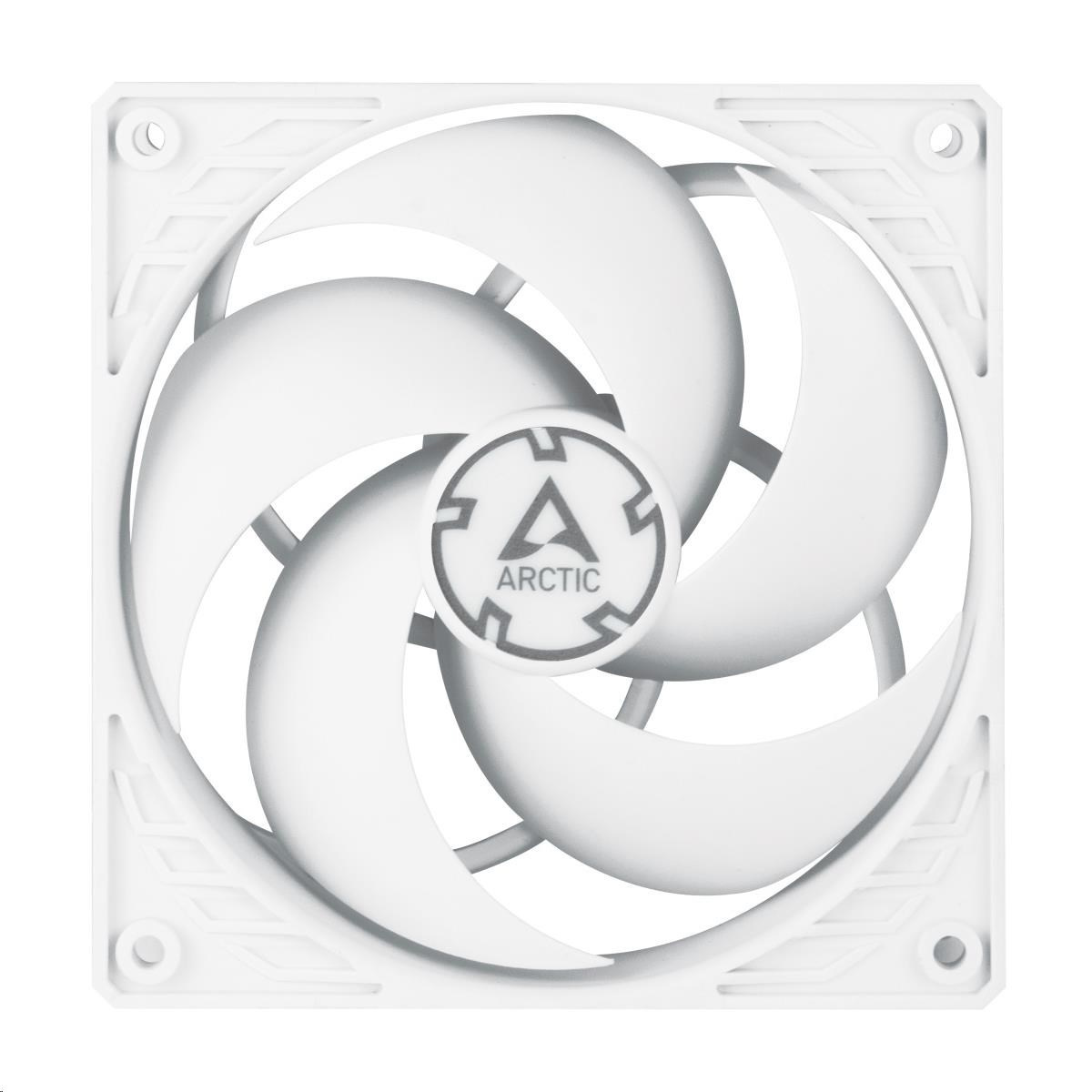

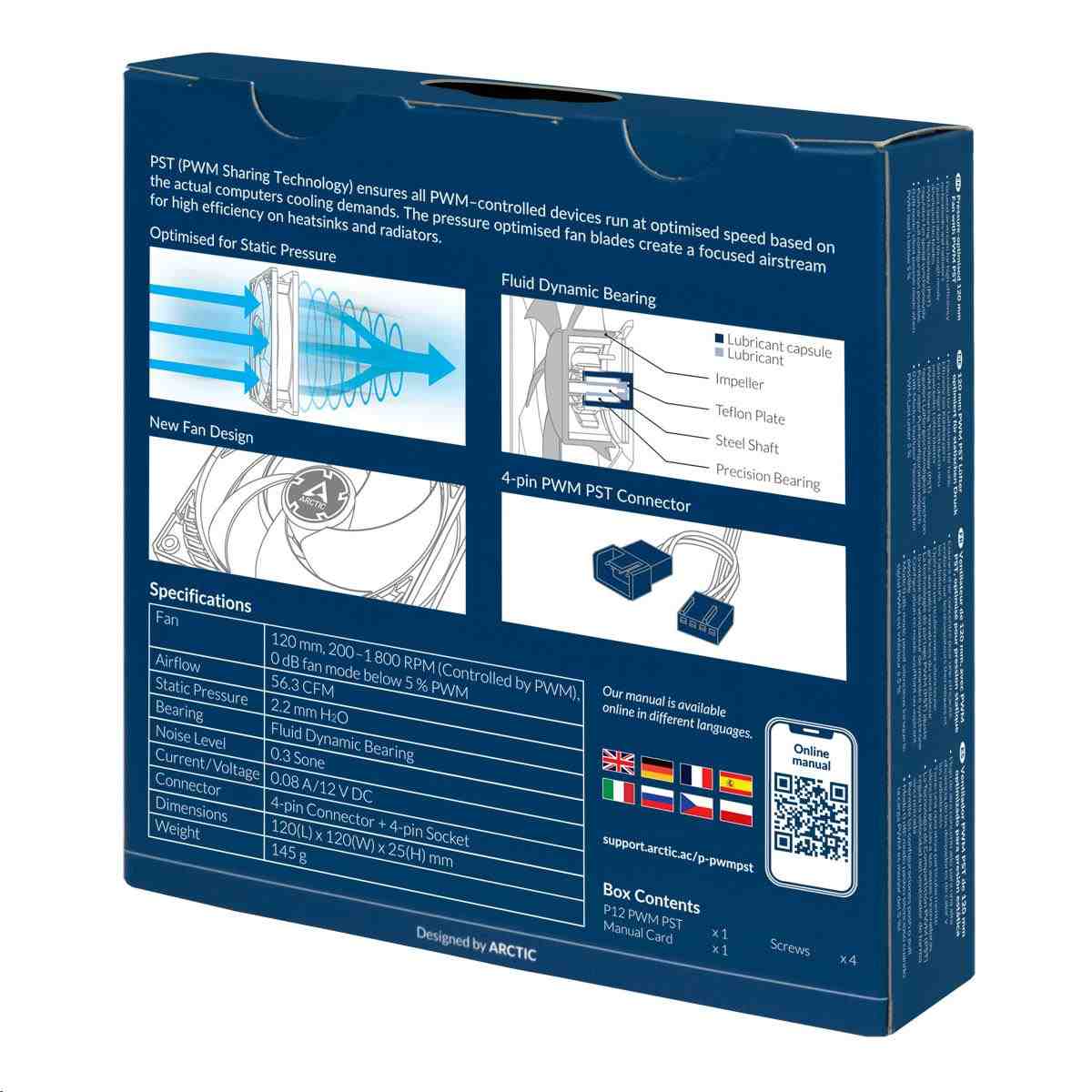

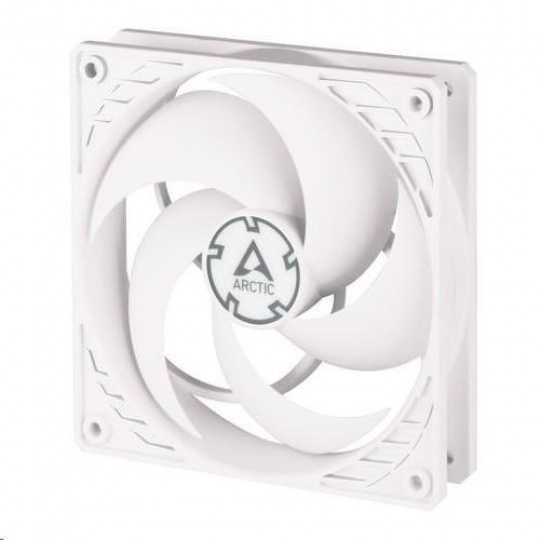

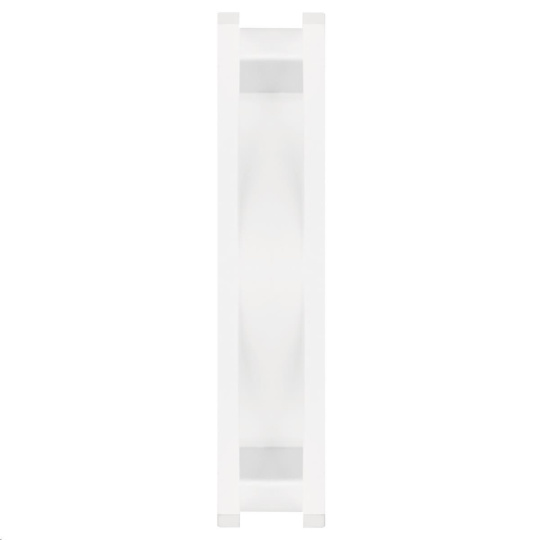

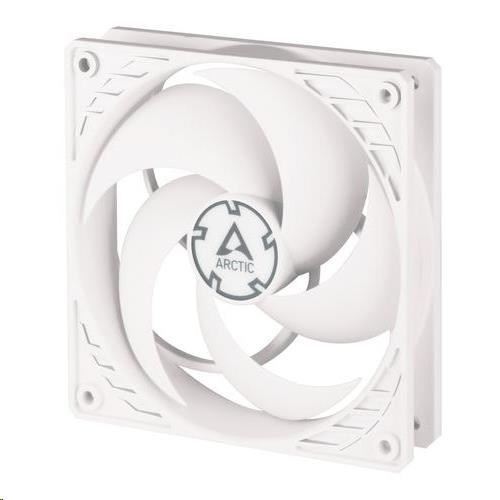

ARCTIC ventilátor P12 PWM PST 120mm, bílá
P12 PWM PST
The P12 PWM PST is a fan with PWM PST connectors. It features completely redesigned fan blades and is optimised
for high static pressure. Thanks to this, it is especially effective when used on heatsinks and in situations with higher air resistance. The wide RPM range from 200 to 1800 RPM can be regulated
seamlessly and synchronously with other fans thanks to ARCTIC's PWM Sharing Technology (PST). The newly developed motor with a low coil temperature significantly increases the life span of the fan. Therefore we have extended the warranty to 10 years.
- Optimised for static pressure
- Ideal choice on heatsinks, radiators and (partly-) covered case vents
- Push- or pull-configuration
- PWM Sharing Technology (PST) regulates fan speed synchronously
- Newly developed, very quiet motor
- Extended life span
- Available in three sleek colors
TECHNICAL SPECIFICATIONS
| Performance | |
| Fan Speed | 200 - 1800 rpm |
| Airflow | 56.3 CFM/ 95.7 m3/h |
| Static Pressure | 2.20 (mm/H2O) |
| Noise Level | 0.3 Sone |
| Fan | |
| Fan Frame | Standard |
| Controll Type | PST |
| Connector | 4-Pin-Connector + 4-Pin-Socket |
| Fan Bearing | Fluid Dynamic Bearing |
| Electric Characteristics | |
| Typical Voltage | 12 V DC |
| Starting Voltage | 3.9 V |
| Current | 0.08 A |
| Cable Lenght | 400 mm |
| Size & Weight | |
| Lenght | 120 mm |
| Width | 120 mm |
| Height | 25 mm |
| Weight | 145 g |
.
ParametryPorovnání
Využití chladiče
Do PC skříně
Typ chladiče
Aktivní
Barva podsvícení
bez podsvícení
Napájecí konektor
4pin
Velikost ventilátoru
120x120
ARCTIC ventilátor P12 PWM PST 120mm, bílá
