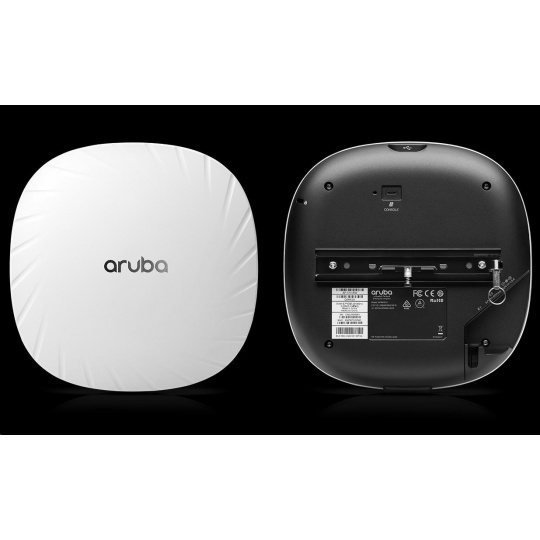

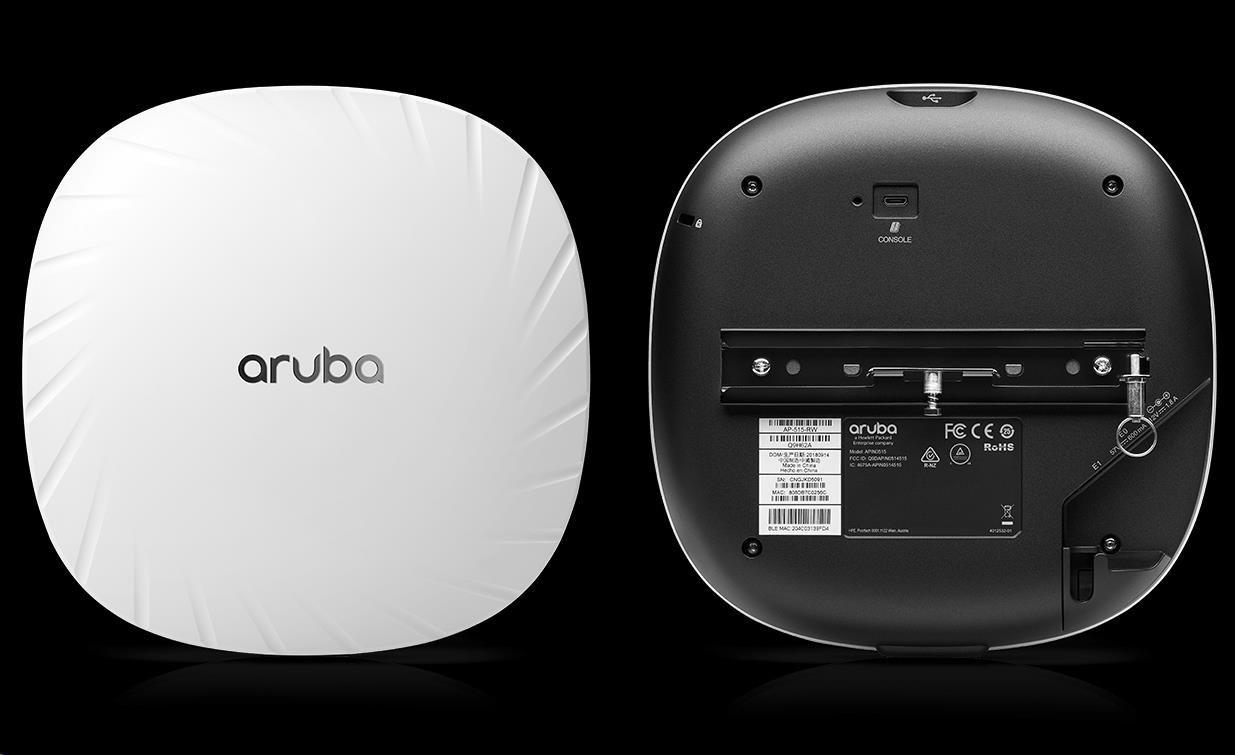

Aruba AP-514 (RW) Dual Radio 4x4:4 + 2x2:2 802.11ax External Antennas Unified Campus AP
Aruba AP-514 (RW) Dual Radio 4x4:4 + 2x2:2 802.11ax External Antennas Unified Campus AP
Aruba AP-515 (RW) Dual Radio 4x4:4 + 2x2:2 802.11ax Internal Antennas Unified Campus AP
Série přístupových bodů Aruba 510 s technologií 802.11ax vysokorychlostní přístup pro mobilní zařízení. Rychlosti dosahují až 4.8 Gb/s v pásmu 5GHz a až 575 Mb/s v pásmu 2,4Ghz. Každý AP podporuje až 256 klientských zařízení.
Odkaz na web výrobce: https://www.arubanetworks.com/assets/ds/DS_AP510Series.pdf
SPECIFIKACE
Rozhraní
- E0: HPE SmartRate port (RJ-45, maximum negotiated speed 2.5Gbps)
- E1: 10/100/1000BASE-T Ethernet network interface (RJ-45)
- DC power interface: 12Vdc (nominal, +/- 5%), accepts 2.1mm/5.5mm center-positive circular plug with 9.5mm length
- USB 2.0 host interface (Type A connector)
- Bluetooth 5 and Zigbee (802.15.4) radio
- Integrated vertically polarized omnidirectional antenna with roughly 30 degrees downtilt and peak gain of 3.5dBi (AP-515) or 4.9dBi (AP-514)
- Visual indictors (two multi-color LEDs): for System and Radio status
- Reset button: factory reset, LED mode control (normal/off)
Key features:
• 3 Gbps of maximum throughput (HE80/HE40)
• WPA3 and Enhanced Open security
• Built-in technology that resolves sticky client issues for Wi-Fi 6 and Wi-Fi 5 devices
• OFDMA and MU-MIMO for enhanced multi-user efficiency
• IoT-ready Bluetooth 5 and Zigbee support
• Wired and wireless policy enforcement with Dynamic Segmentation
