BAZAR - GIGABYTE MB Sc AM5 B650 EAGLE, AMD B650, 4xDDR5, 1xDP, 1xHDMI - Po opravě (Bez příšlušenství)
BAZAR - GIGABYTE MB Sc AM5 B650 EAGLE, AMD B650, 4xDDR5, 1xDP, 1xHDMI - Po opravě (Bez příšlušenství)

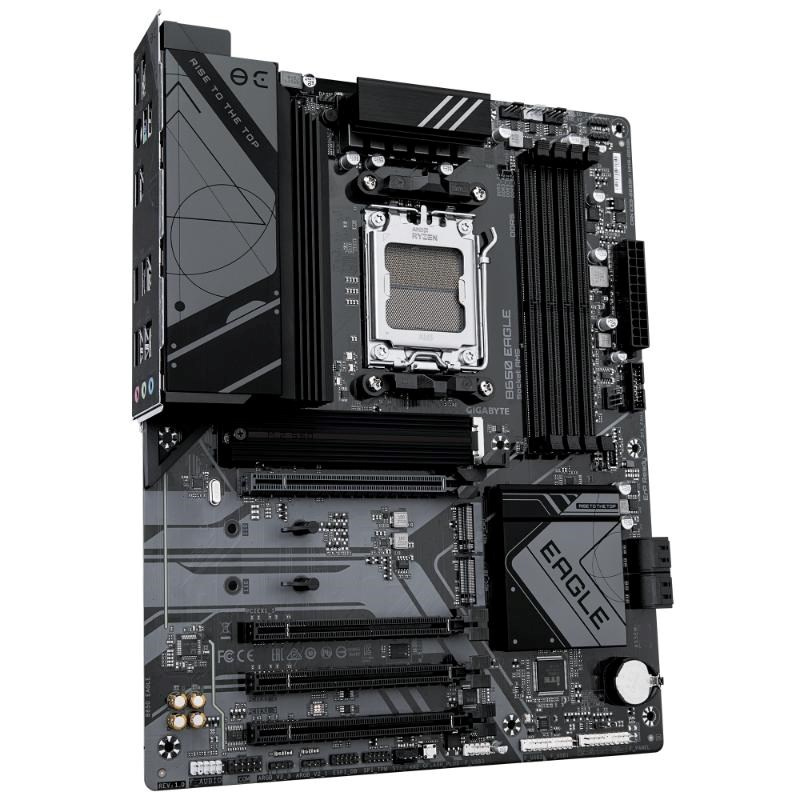

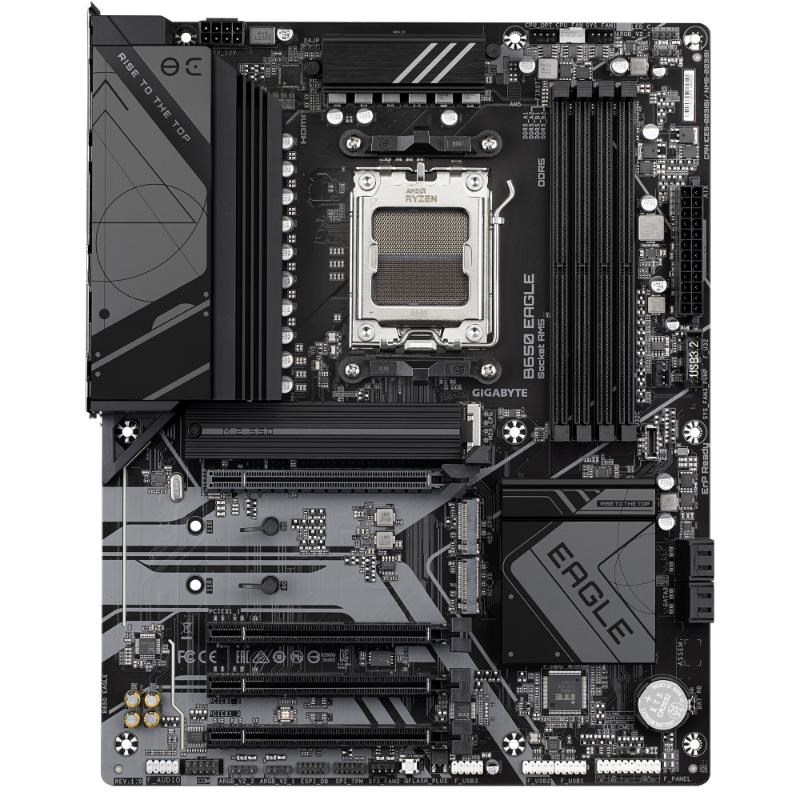

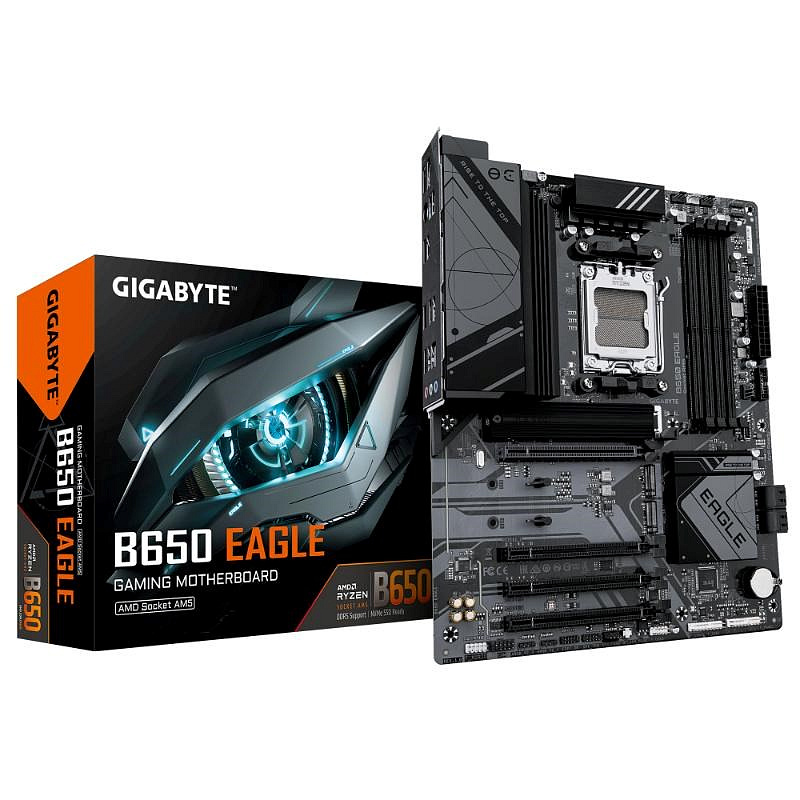

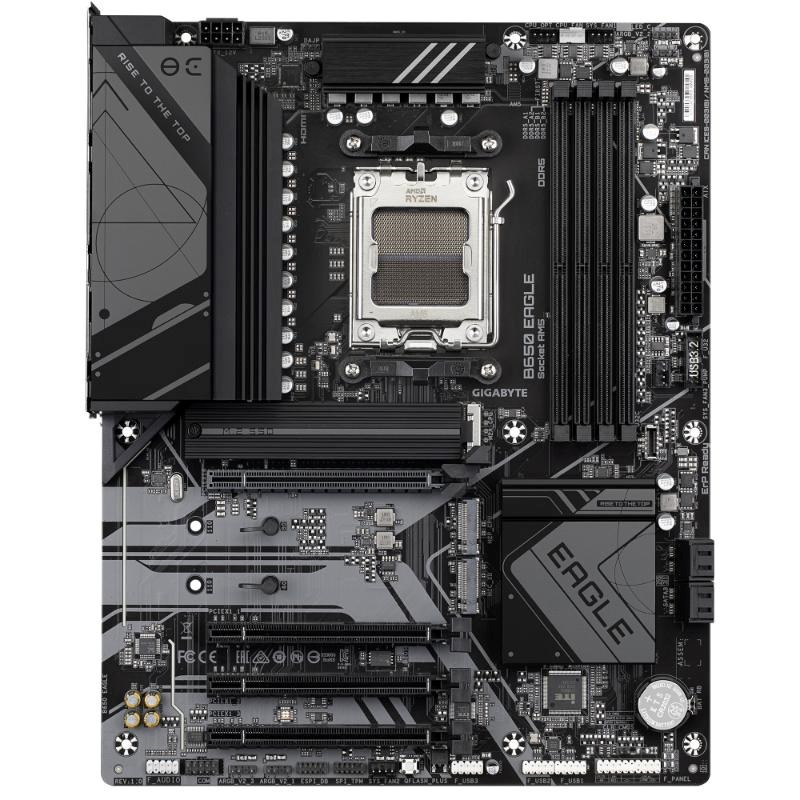

GIGABYTE B650 EAGLE
- AMD Socket AM5:Supports AMD Ryzen™ 7000/ Ryzen™ 8000/ Ryzen™ 9000 Series Processors
- Unparalleled Performance:12+2+2 Phases Digital VRM Solution
- Dual Channel DDR5:4*SMD DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
- SuperSpeed Storage:1*PCIe 5.0 + 2*PCIe 4.0 M.2 Connectors
- Advanced Thermal Design & M.2 Thermal Guard:To Ensure VRM Power Stability & 25110 M.2 SSD Performance
- EZ-Latch:PCIe x16 Slot with Quick Release Design
- Fast Networks:GbE LAN
- Extended Connectivity:DP, HDMI, Rear USB® 10Gb/s
- Smart Fan 6:Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus:Update BIOS Without Installing the CPU, Memory and Graphics Card
CPU
AMD Socket AM5, support for:
AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors
(Go to GIGABYTE's website for the latest CPU support list.)
Chipset
AMD B650
Memory
Support for DDR5 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800/ 4400 MT/s memory modules
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
Onboard Graphics
Integrated Graphics Processor:
- 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
* Support for DisplayPort 1.4 version.
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support for native HDMI 2.1 TMDS compatible ports.
(Graphics specifications may vary depending on CPU support.)
Audio
Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
LAN
Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Expansion Slots
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
- AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x16 mode
- AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
- AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
2 x PCI Express x16 slots (PCIEX1_1/PCIEX1_2), integrated in the CPU, supporting PCIe 3.0 and running at x1
* The PCIEX1_1 and PCIEX1_2 slots become unavailable when an AMD Ryzen™ 8000 Series-Phoenix 2 processor is used.
1 x PCI Express x16 slot (PCIEX1_3), integrated in the Chipset, supporting PCIe 3.0 and running at x1
Storage Interface
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:
- AMD Ryzen™ 7000 Series Processors support PCIe 5.0 x4/x2 SSDs
- AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
- AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
1 x M.2 connector (M2P_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:
- AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x2 SSDs
- AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x2 SSDs
- AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs
1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support)
4 x SATA 6Gb/s connectors
RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, and RAID 10 support for SATA storage devices
USB
CPU:
- 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
- 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support
CPU+USB 2.0 Hub:
- 4 x USB 2.0/1.1 ports on the back panel
Chipset:
- 2 x USB 3.2 Gen 1 ports available through the internal USB header
- 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
- 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
Chipset+USB 2.0 Hub:
- 4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x CPU fan/water cooling pump header
2 x system fan headers
1 x system fan/water cooling pump header
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
3 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
3 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x Q-Flash Plus button
1 x serial port header j
1 x Clear CMOS jumper

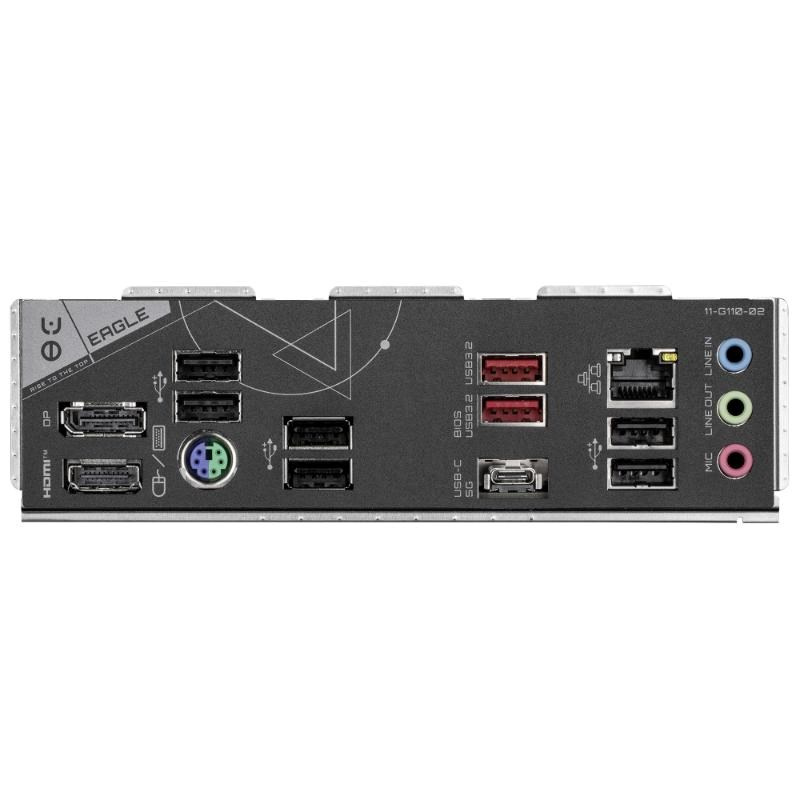

Back Panel Connectors
1 x DisplayPort
1 x HDMI port
1 x PS/2 keyboard/mouse port
2 x SMA antenna connectors (2T2R)
1 x USB Type-C® port, with USB 3.2 Gen 1 support
2 x USB 3.2 Gen 2 Type-A ports (red)
6 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
I/O Controller
iTE® I/O Controller Chip
H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
BIOS
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Support for Q-Flash
Support for Q-Flash Plus
Bundled Software
Norton® Internet Security (OEM version)
LAN bandwidth management software
Operating System
Support for Windows 11 64-bit
Support for Windows 10 64-bit
Form Factor
ATX Form Factor; 30.5cm x 24.4cm
