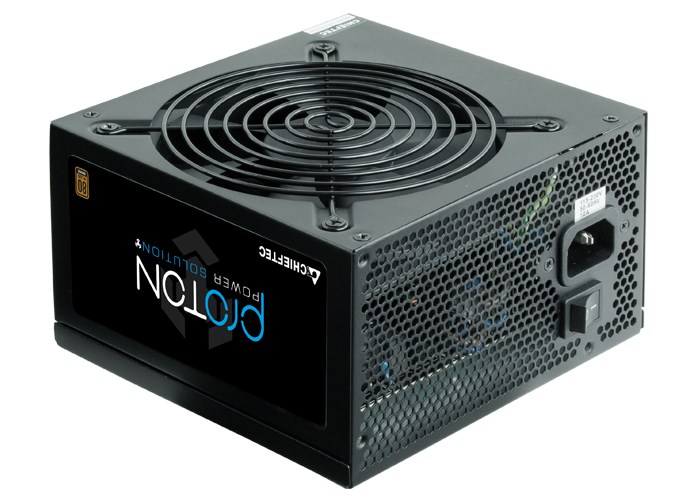

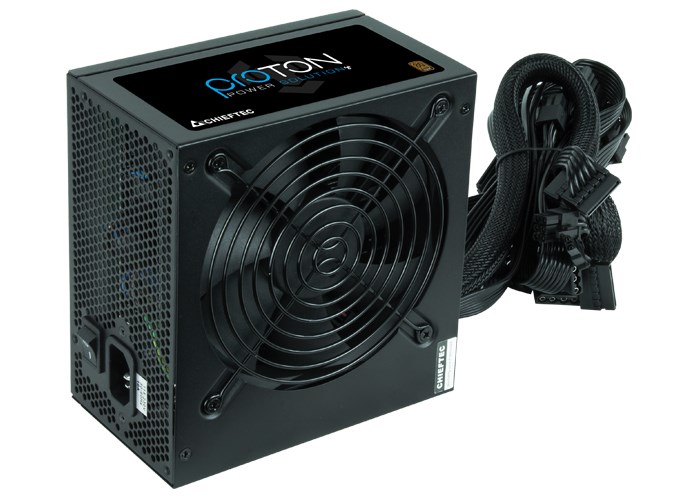

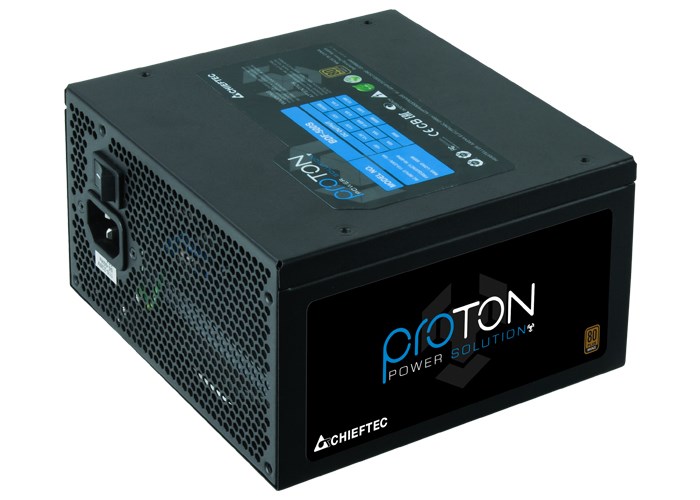

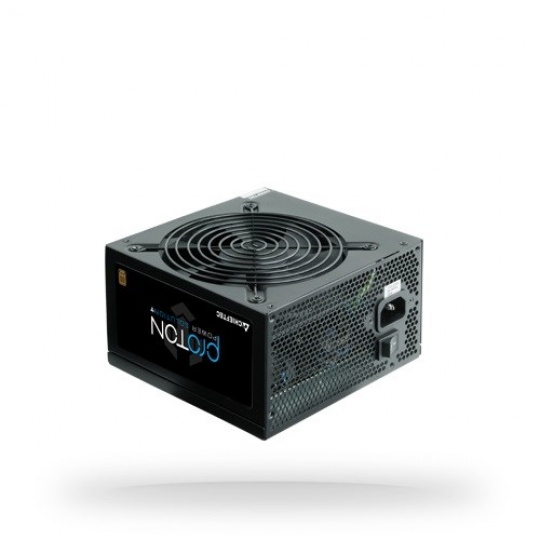

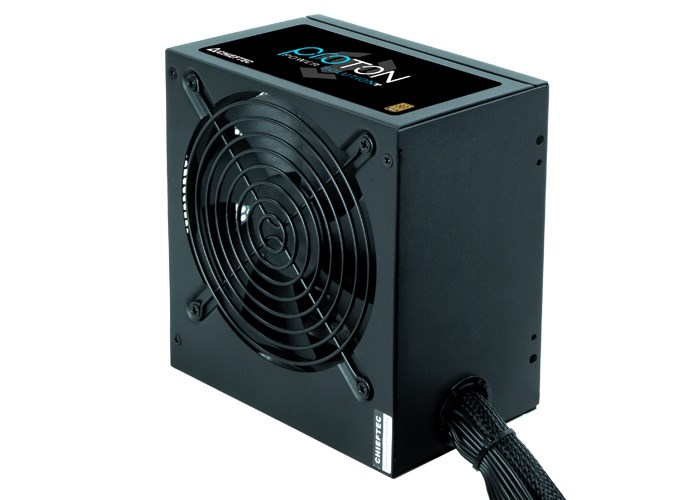

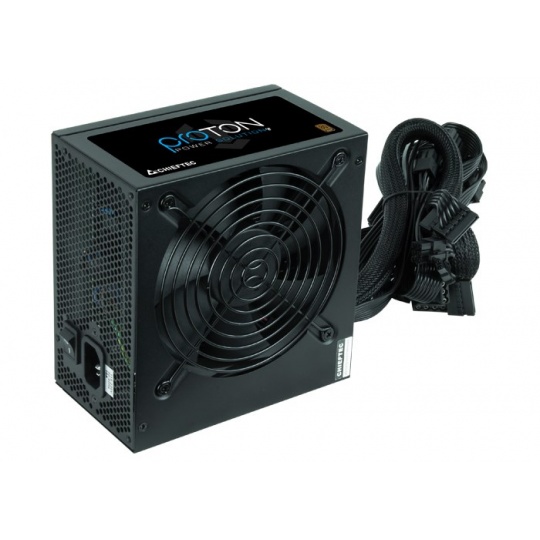

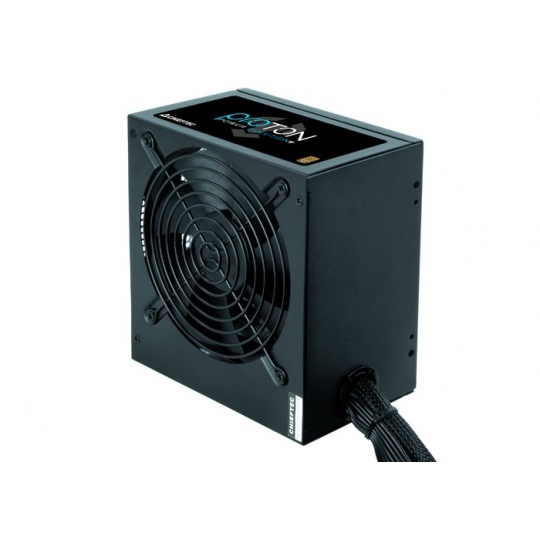

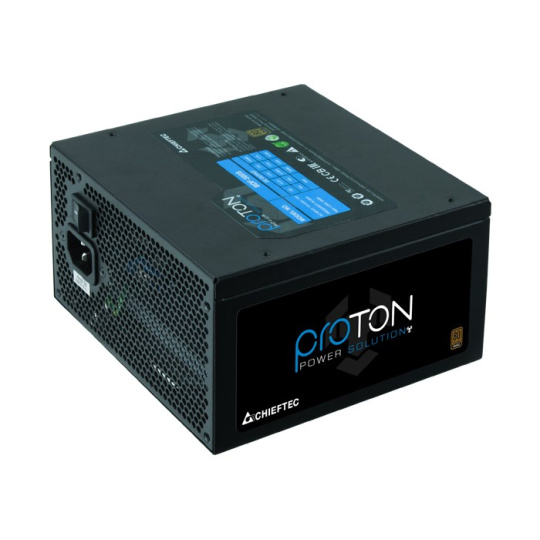

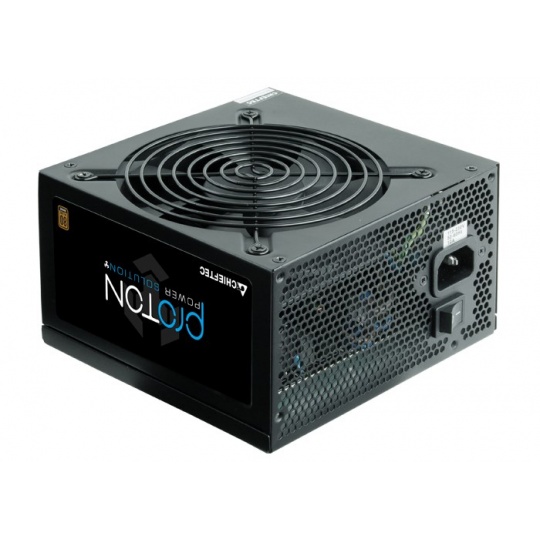

CHIEFTEC zdroj Proton, BDF-600S, 600W, 14cm fan, PFC, 80+ Bronze
Popis a parametry
CHIEFTEC zdroj Proton, BDF-600S, 600W, 14cm fan, PFC, 80+ Bronze
| Performance | |
| AC Input: | 115-230V |
| Frequency: | 50 - 60Hz |
| +5V: | 18A |
| +3,3V: | 18A |
| +5V & +3,3V combined: | 103W |
| +12V 1: | 50A |
| +12V 2: | N/A |
| +12V 1 & +12V 2 combined: | N/A |
| +12V 3: | N/A |
| +12V 4: | N/A |
| +12V 3 & +12V 4 combined: | N/A |
| P.F.: | >0,9 |
| -12V: | 0,3A |
| +5VSB: | 2,5A |
| Maximum Load: | 600W |
| Native cable | |
| 24PIN ATX: | 1 |
| SATA: | 6 |
| MOLEX: | 2 |
| Floppy: | - |
| 4PIN 12V: | - |
| 8PIN 12V: | - |
| 8PIN (4+4) 12V: | 1 |
| 6PIN PCIe: | - |
| 8PIN (6+2) PCIe: | 2 |
| Features | |
| Spezification: | ATX 12V 2.3 |
| Form factor: | PS II |
| Efficiency: | > 85% |
| Dimension (DxWxH): | 140 mm x 150 mm x 87 mm |
| PFC: | Active PFC (0,9) |
| Fan: | 120mm silent fan |
| Security: | UVP (Undervoltage protection) |
| OVP (Overvoltage protection) | |
| SCP (Short-circuit protection) | |
| OPP (Overload protection) | |
| OCP (Overcurrent protection) | |
| OTP (Over Temperature Protection) | |
| AFC (Automatic Fanspeed Control) | |
| Warranty: | 24 Month |
.
ParametryPorovnání
Formát zdroje
ATX
Konektory
8pin CPU 1x
Konektory
SATA 15-pin
Konektory
Molex
Konektory
FDD
Konektory pro základní desku
ATX 24-pin
Konektory pro základní desku
ATX 20-pin
Konektory pro základní desku
EPS 8-pin
Efektivita zdroje
80 Plus Bronze
Modulární kabeláž
Ne
Podsvícení
Bez podsvícení
Výkon zdroje (W)
600
CHIEFTEC zdroj Proton, BDF-600S, 600W, 14cm fan, PFC, 80+ Bronze
