Club3D hub MST USB-C na DisplayPort, 4K60Hz (M/F)

Druh IO zařízení:MST hub; Provedení:Externí.... více
Běžná cena: 2 085  (-13%)
1 506.61 Kč bez DPH
Na dotaz
1 823 Kč
ks
Vyberte si zvýhodněné balení
Množstevní slevy
Kód: 795171
Kód dod.: CSV-1555
EAN: 841615102150
Záruka: 24 Měsíc(ů)
Výrobce: Club 3D
Popis a parametry

Club3D hub MST USB-C na DisplayPort, 4K60Hz (M/F)

USB3.2 Gen2 Type-C(DP Alt-Mode) to DisplayPort Dual Monitor 4K60Hz M/F MST hub

The CSV-1555 is a USB3.2 Gen2 Type-C(DP™ Alt-Mode) to DisplayPort™Dual Monitor 4K60Hz M/F MST hub. This USB-C MST hub is designed to cater for your most versatile connectivity demands, such as Mobile Phone, Tablet, laptop, etc. with a USB-C output which supports DP™ Alt-Mode.

Give your Phone, Ultrabook more displays. Phones, Ultrabooks and notebooks are increasingly becoming more powerful and smaller in the physical form factor. With a single USB3.2 Gen2 port available you can now drive one- or two- Displayport™ screen simultaneously at 4K60Hz or One display at 4K120Hz. All it needs is a free USB3.2 Gen2 port with DP™ Alt-Mode on your Phone, Laptop or Ultrabook to connect to the MST hub and will provide you with unparalleled connection options for Dual 4K60Hz displays. The setup is easy and simple to do, provided your system supports this function.

  • Support dual display 3840 x 2160 @ 60HZ
  • Support for BT.2020 color space
  • Upstream port:
    • USB3.2 Gen2 Type-C port with DP™ Alt-Mode support
  • Downstream port:
    • Windows(MST model)
      • Support Dual Displayport™ (4096 x 2160@60Hz)
      • Support Single Displayport™ (3840 x 2160@120Hz)
    • MAC OS(SST model)*
      • Support Single Displayport™ (3840 x 2160@60Hz)
      • Support Dual Displayport™ (3840 x 2160@30Hz)

* This resolution specification might be limited by the device itself


TECHNICAL SPECIFICATIONS

OS Support Windows®10, Mac OS®
In the box CSV-1555, USB3.2 Gen2 Type-C(DP™ Alt-Mode) to DisplayPort™1.2 Dual Monitor 4K60Hz M/F MST hub
Available Interfaces Input: USB3.2 Gen 1 Type-C Male
Output: 2x DisplayPort™ Female

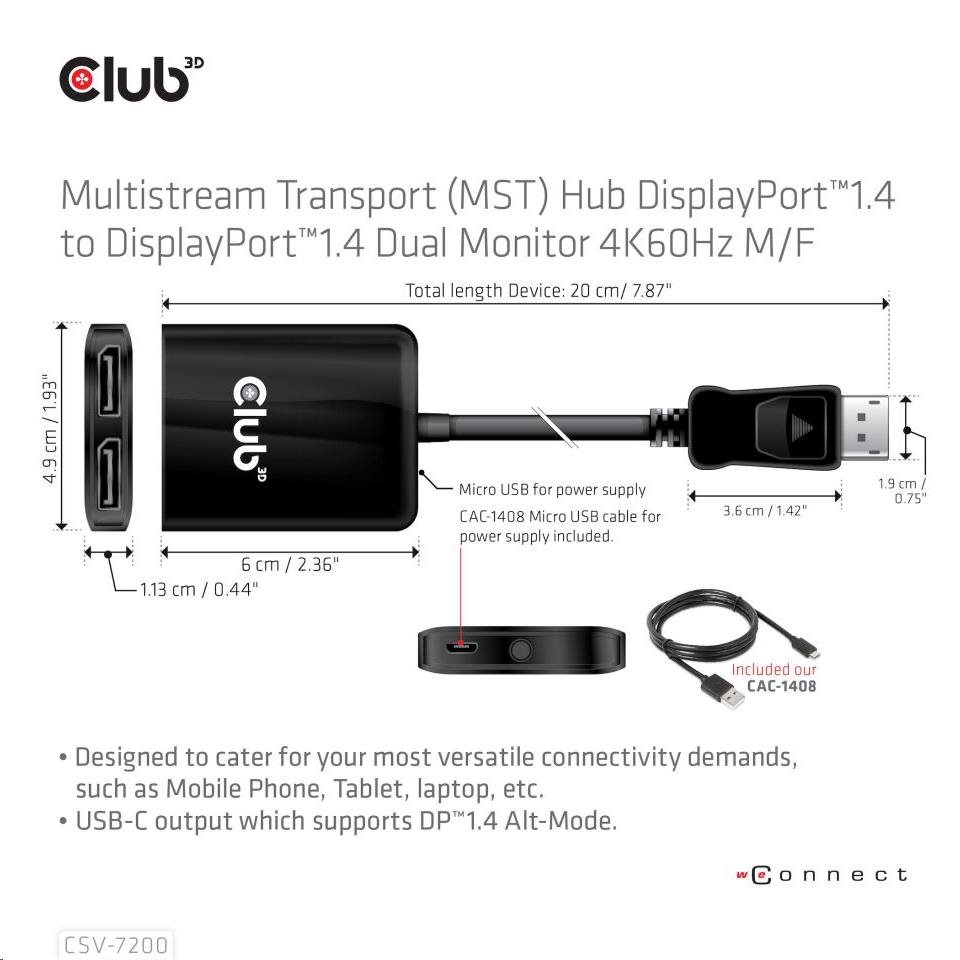

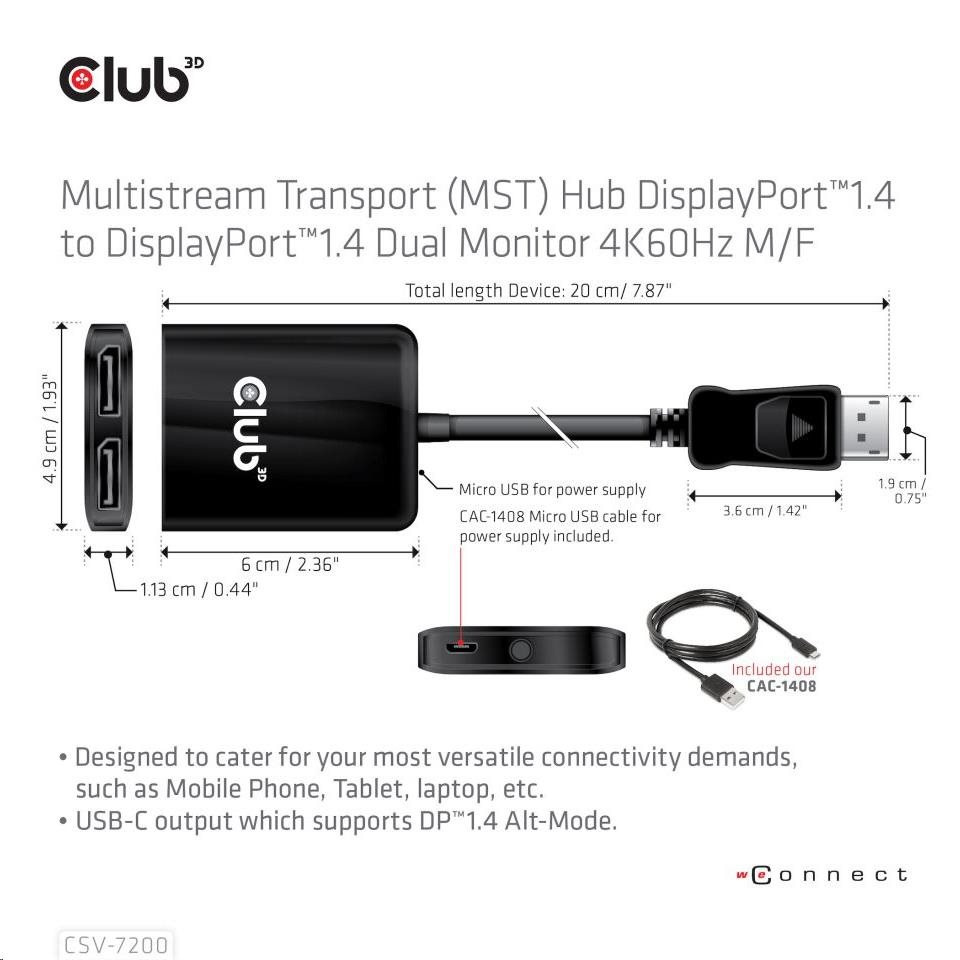

Box size 6x24x3.5cm / 2.36 x 9.45 x 1.38"
Device size 6 x 4.9 x 1.13 cm / 2.36 x 1.93 x 0.44"
Total length Device 20 cm/ 7.87"
Box Weight 28 gr / 0.99 oz
Device Weight 50 gr / 1.76 oz
LDPE Bag Weight 5 gr / 0.17 oz
Total Weight 83 gr / 2.92 oz


In case of technical questions, you can contact the official support of the Club 3D manufacturer by email: support@club-3d.com. Support works mainly in English, but you can also write a question in Czech and the manufacturer will handle it. The manufacturer will respond within 24 hours. It is also possible to visit the discussion at the link: https://insights.club-3d.com/. Where you can also find useful information on using Club 3D products.
.
