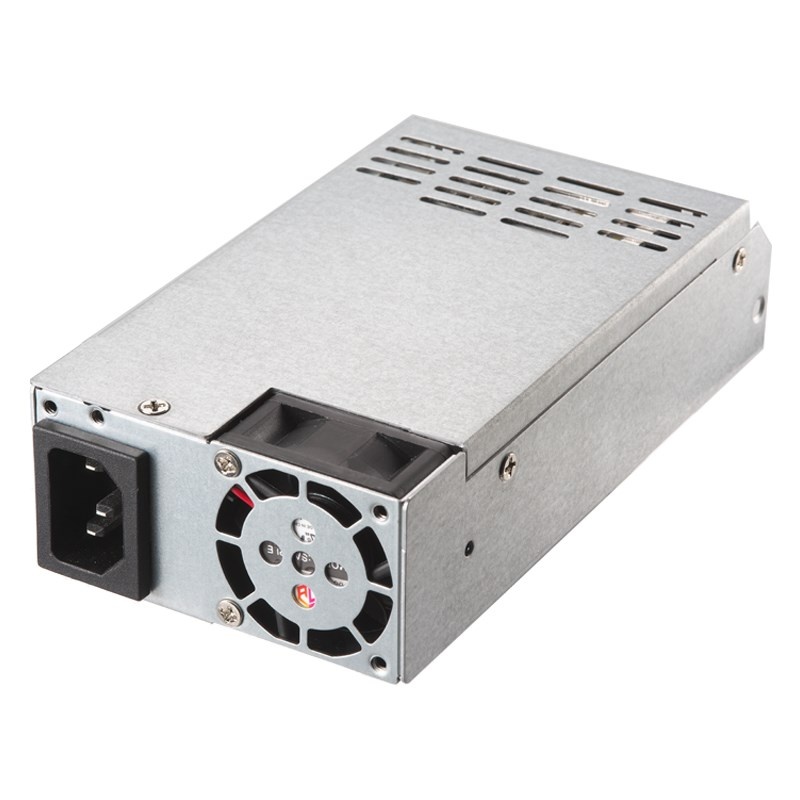

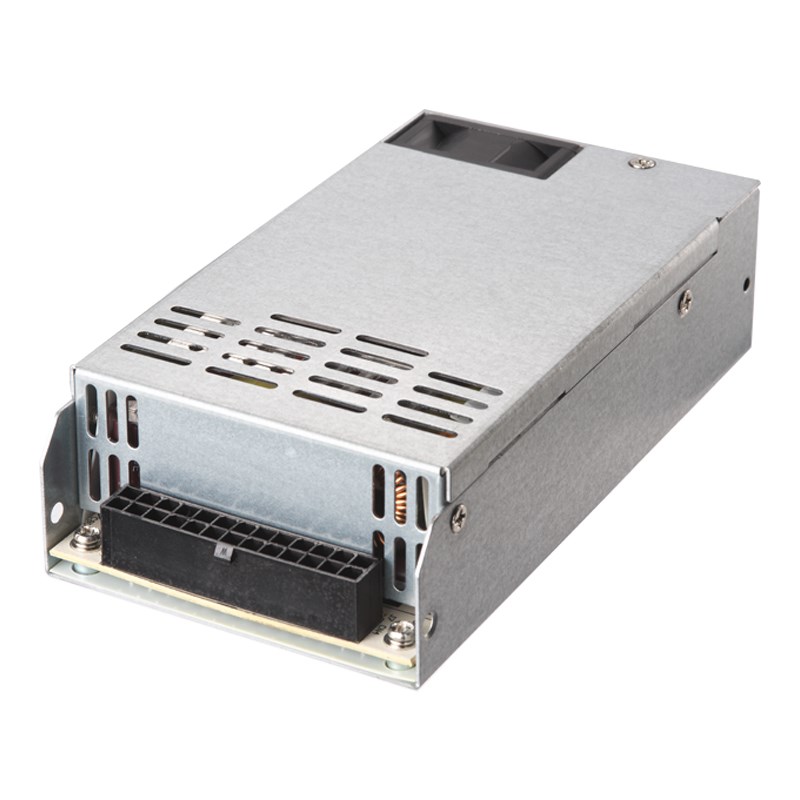

SEASONIC zdroj 250W SSP-250SUB 80+ Bronze, Flex ATX, full range
Popis a parametry
SEASONIC zdroj 250W SSP-250SUB 80+ Bronze, Flex ATX, full range
Features:
SATA-ready
Fully modular
High efficiency and reliability
Low ripple and noise
Super low noise fan control
Short circuit protection on all outputs
Over voltage protection
Over power protection
Fanless Mode (up to 30 % system load)
Specifications:
| Input frequency | 47 - 63 Hz |
| Inrush current at cold sta | 100 A max. |
| Efficiency (at normal input voltage) | ? 85 % |
| Line regulation | ± 1 % (typical) |
| Load regulation | ± 5 % (typical) |
| Cross regulation | ± 5 % (typical) |
| Ripple / noise | 1% |
| MTBF, full load @ 25 °C ambient (excl. DC fan) | > 100,000 hours |
| Power Factor Correction | 95 % (typical) |
ParametryPorovnání
Formát zdroje
ATX
Konektory
FDD
Konektory
Molex
Konektory
SATA 15-pin
Konektory pro základní desku
ATX 24-pin
Efektivita zdroje
80 Plus Bronze
Modulární kabeláž
Ne
Výkon zdroje (W)
250
SEASONIC zdroj 250W SSP-250SUB 80+ Bronze, Flex ATX, full range
