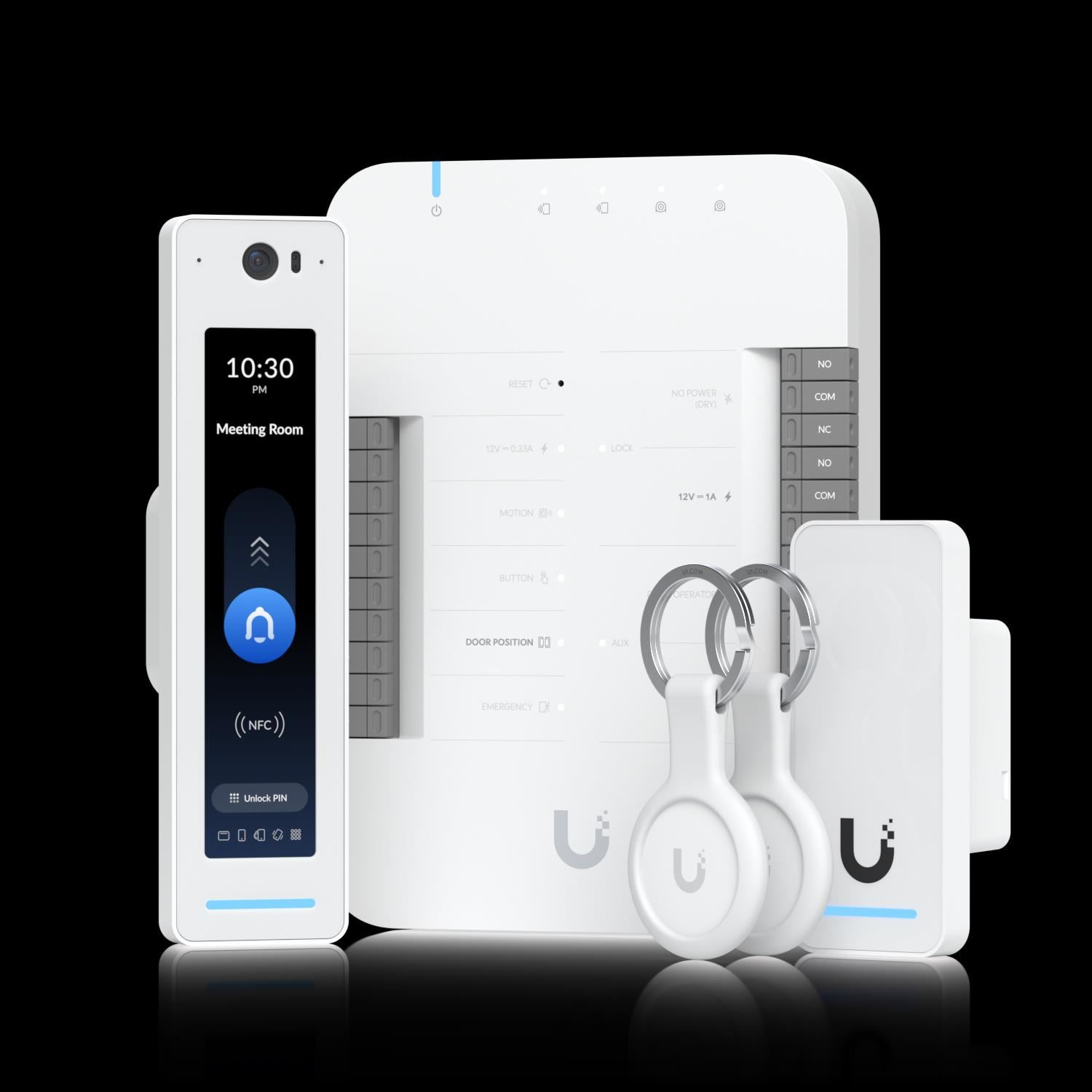

UBNT UA-G2-SK - UniFi Access G2 Starter kit Pro
Technical Specifications UA-Hub-Door Mechanical Enclosure material Polycarbonate Mounting material Polycarbonate Weight 363 g (12.8 oz) Dimensions 174.9 x 126 x 32.9 mm (6.9 x 5 x 1.3") Hardware Networking interface (5) 10/100/1000 Base-T Max. power consumption Without PoE output: 30W With PoE output: 50W PoE output PoE passthrough, (4) PoE, 50V DC, total 20W LEDs System: white/blue Output relays: white Digital input Request to exit/request to enter/remote release/door position sensor Dry output relay Lock: 30V DC, 1A Aux: 30V DC, 1A Powered output relay Lock: 12V DC, 1A Aux: 12V DC, 0.33A 12V DC, 0.33A Operating environment Indoor use only Operating temperature 0 to 40° C (32 to 104° F) Operating humidity 5 to 95% noncondensing Software information The software version of a product can be checked in https://unifi.ui.com UL 294 level Destructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I UL 294 statement Compliance with IEEE 802.3 (at or af) specifications was not verified as part of UL 294. The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits. CAN/ULC-60839-11-1 Grade Grade assignment: 1 Certifications CE, FCC, IC, UL 294, CAN/ULC-60839-11-1 Document number, and issue date and/or revision level UA-Hub-Door002, V01 Power method PoE++ UL 294 Power-limited Class 2 PSU UL 60950/62368 LPS/PS2 PSU PoE input 50V DC, 1A Button (1) Factory-reset Wiring Information Typical installation (Shielded) DC power input Belden 8750 18 AWG 2 conductor (30.5 m/100 ft) Door position switch Belden 8750 18 AWG 2 conductor (152.5 m/500 ft) Request to exit Belden 8750 18 AWG 2 (152.5 m/500 ft) PoE cabling requirements The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 24 AWG (0.21 mm2) for horizontal or riser cable. Wiring gauge requirements (AWG) Total length to device Output load current at 12V DC 100mA 250mA 500mA 1A 6.1 m (20 ft) 22 22 22 18 15.2 m (50 ft) 22 22 22 18 30.5 m (100 ft) 22 22 18 18 LEDs PoE in Steady blue: Adopted/device is ready Steady white: Pending adoption Blinking white/blue: Upgrading firmware PoE out Off: Not connected or no data link Steady blue: Connected and data link on UA-G2-Pro Mechanical Dimensions 160 x 40.4 x 40.55 mm (6.3 x 1.59 x 1.6") Weight 136 g (4.8 oz) Enclosure material Polycarbonate, glass Mount material Aluminum alloy Mounting Wall, gang box Weatherproofing IP55 Hardware Networking interface (1) 10/100/1,000 MbE RJ45 port Connectivity BLE 4.2 NFC Power method PoE Supported voltage range 48V DC Max. power consumption 6W ESD/EMP protection Air: ±15kV, contact: ±8kV Sensor ToF sensor Camera 4000 x 3000, 12 MP, 30 FPS Microphone Yes Speaker (1) 4 ohm, 1.5W LEDs R/G/B/W Flash Button (1) Factory-reset NFC frequency 13.56 MHz NFC read range < 30 mm NFC standards ISO 14443A, 14443B, 15693 NFC technology NFC Tag 1,2,3,4,5 MIFARE Classic MIFAREPlus MIFARE Ultralight MIFARE DESFire Operating temperature -10 to 40° C (14 to 104° F) Operating humidity 5 to 90% noncondensing Certifications CE, FCC, IC UA-G2 Mechanical Dimensions 93 x 40 x 36.5 mm (3.7 x 1.6 x 1.4") Weight 82 g (2.9 oz) Enclosure material Polycarbonate, glass Mounting In wall, gang box Weatherproofing IP55 Hardware Networking interface (1) 10/100 MbE RJ45 port Connectivity BLE 4.1 Power method PoE Supported voltage range 48V DC Max. power consumption 5W ESD/EMP protection Air: ±15kV, contact: ±8kV Sensors Proximity sensor Speaker (1) 8 ohm, 0.7W LEDs R/G/B/W Button (1) Factory-reset NFC frequency 13.56 MHz NFC read range < 30 mm NFC standards ISO 14443A, 14443B, 15693 NFC technology NFC Tag 1,2,3,4,5 MIFARE Classic MIFAREPlus MIFARE Ultralight MIFARE DESFire Operating temperature -30 to 45° C (-22 to 113° F) Operating humidity 5 to 90% noncondensing Certifications CE, FCC, IC UA-Pocket Mechanical Dimensions 84 x 39 x 7.4 mm (3.3 x 1.5 x 0.29") Weight 16 g (0.56 oz) Enclosure material Polycarbonate, stainless steel Weatherproofing IP54 Hardware NFC frequency 13.56 MHz NFC technology ISO/IEC 14443 Type A MIFARE DESFire EV3 4K UniFi Access Proprietary Security Protocol Operating temperature -10 to 45° C (14 to 113° F) Operating humidity 10 to 90% noncondensing Certification CE.
